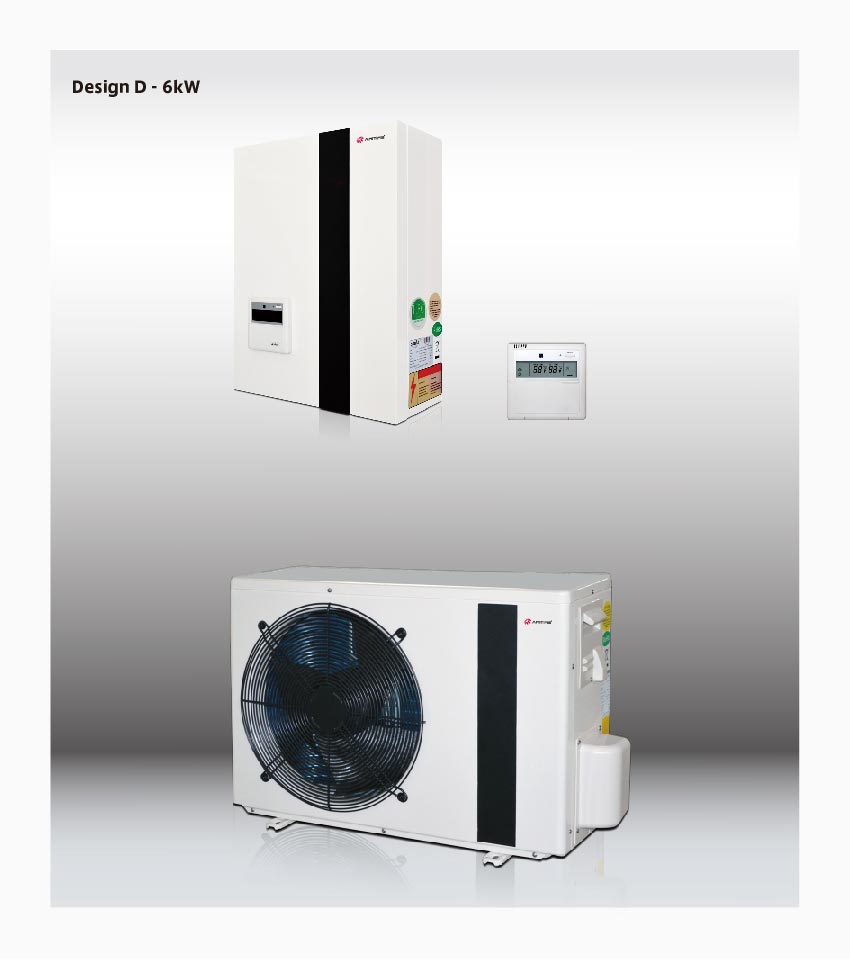

õhk-vesi soojuspump 6 kw mudel

Split tüüpi soojuspump . Inverter kompressoriga mudelid.

Soodne lahendus väiksema maja kütmiseks.

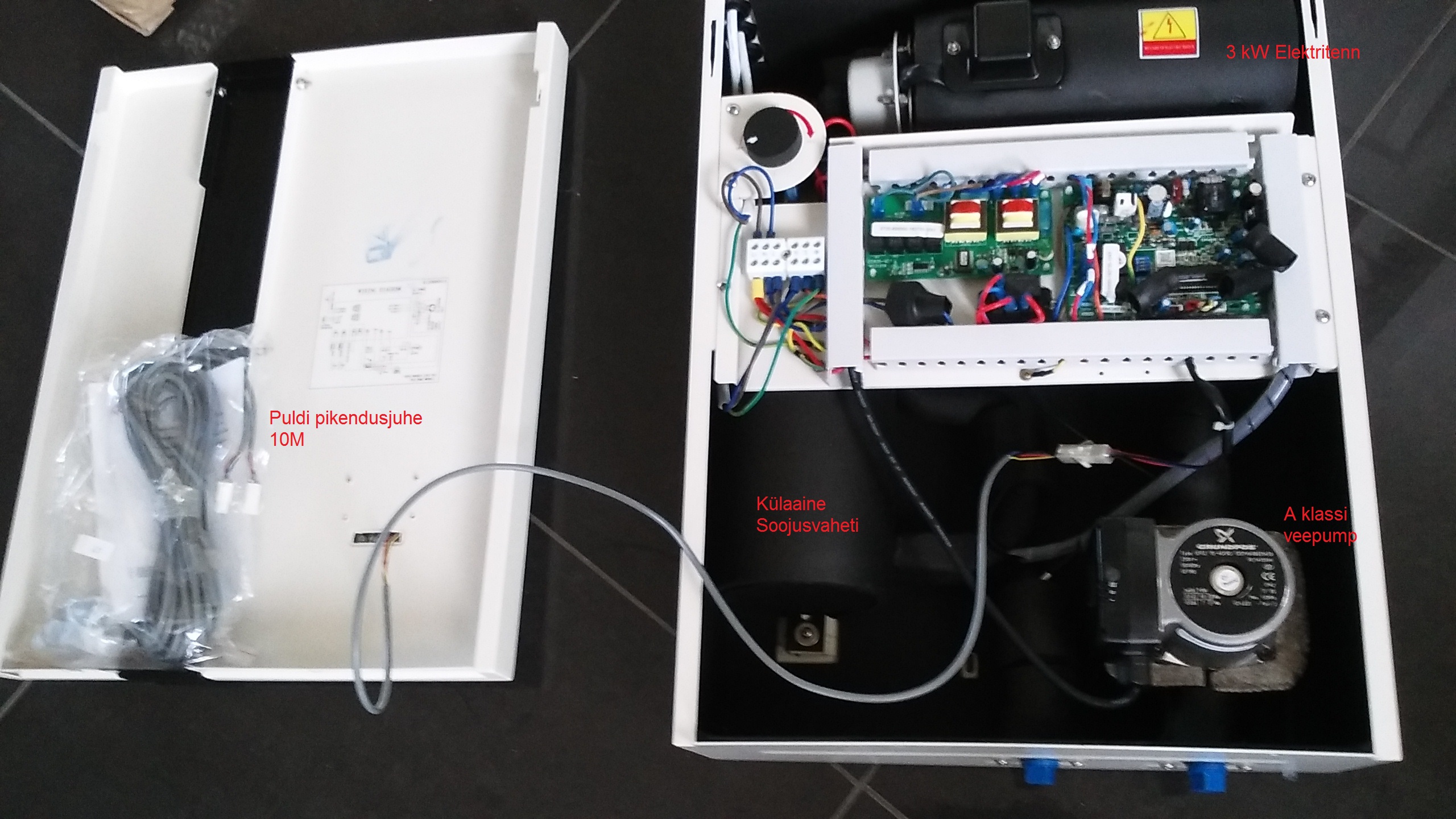

Välisosa ja juhtimine. Veepump ning plaatsoojusvaheti eraldi hinnaga.


Ulkoyksikkö+ohjaus, vesipumppu sekä levyvaihdin eri hinta.


Outdoor unit and PCB (water pump and heat exchanger optional).




Model



AVH-12V1DD

Power Supply

V/Hz/Ph

220-240/50/1

Refrigerant



R410A






Max. Heating Capacity (2)

kW

5,14

C.O.P (2)

W/W

3.54

Heating Capacity Min./Max.(2)

kW

2.17/5.14

Heating Power Input Min./Max.(2)

kW

0,58/1,45

C.O.P Min./Max.(2)

W/W

3,42/3,72

Max. Heating Capacity(3)

kW

4,26

C.O.P (3)

W/W

2,69

Heating Capacity Min./Max.(3)

kW

1,97/4,26

Heating power input Min./Max.(3)

kW

0,58/1,45

C.O.P Min./Max.(3)

W/W

2,10/3.20

Max. Cooling Capacity(4)

kW

4,00

E.E.R (4)

W/W

3,1

Cooling Capacity Min./Max.(4)

kW

1,25/4,00

Cooling Power Input Min./Max.(4)

kW

0,65/1,70

E.E.R Min./Max.(4)

W/W

2,68/3,30

Max. Cooling Capacity(5)

kW

3,64

E.E.R(5)

W/W

2,82

Cooling Capacity Min./Max.(5)

kW

1.14/3,64

Cooling Power Input Min./Max.(5)

kW

0.67/1.29

E.E.R Min./Max.(5)

W/W

1.59/2.88

Circuit Max. Pressure

bar

38

Compressor

Type

Rotary

Quantity/System

1

Fan

Quantity



1

Airflow

m3/h

1750

Rated power

W

85

Air Side Heat Exchanger

Face area

m2

0,395

Row-Fins/Inch

2 Rows-14

Tube.Dia

Inch

3/8 O.D.

Noise Level

Indoor/Outdoor

dB(A)

35/46

Water Side Heat Exchanger

Type

Tube In Shell Heat Exchanger

Water Pressure Drop

kPa

30

Piping Connection

Inch

G3/4"

Allowable Water Flow

Min. Water Flow

L/S

0.13

Rated Water Flow

0.23

Max. Water Flow

0.28












        (2) Heating condition: water inlet/outlet temperature: 30℃/35℃, Ambient temperature: DB 7℃/WB 6℃;

        (3) Heating condition: water inlet/outlet temperature: 40℃/45℃, Ambient temperature: DB 7℃/WB 6℃;

        (4) Cooling condition: water inlet/outlet temperature: 23℃/18℃, Ambient temperature: DB35℃/WB24℃;

        (5) Cooling condition: water inlet/outlet temperature: 12℃/7℃, Ambient temperature: DB35℃/WB24℃;

        (6) The specifications are subject to change without prior notice. For actual specifications of unit,

               please refer to the stickers on the unit.
