Küttelahendus uuele või renoveeritavale majale. Kasutatakse peamiselt puukütet, pelletit, gaasi jne kütusena kasutatavate küttesüsteemide ümberehitamiseks. Kasutatakse ka lihtsamate küttesüsteemide puhul kui maja küte on õhk-vesi soojuspumbaga. Mudel sobib 3-tee ventiili lisamisel ka tarbevee soendamiseks juhtudel kui tarbevee (nt kahesüsteemne) boiler on juba eelnevalt olemas.
UUS MUDEL.
Maja või ridaelamu küte ja soe tarbevesi (eraldi asetseva tarbeveemahutiga)
Juhib kütte ja tarbevee temperatuuri
Küttevee reguleerimisgraafik välisõhu järgi
Juhib küttevee seguventiile (PID juhtimine 1. radiaatoritele 2 põrandaküttele)

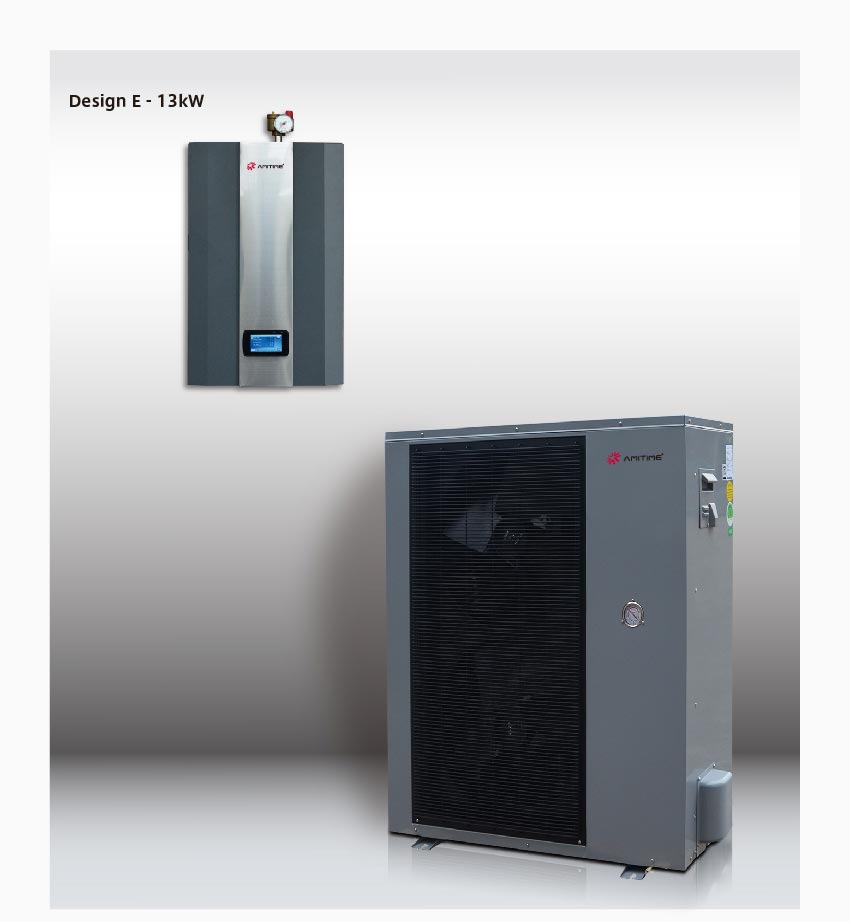

Model |
|
AWH13-V6-SW |
AWH19-V6-SW |
|
Power Supply |
V/Hz/Ph |
230/50/1 |
400/50/3 |
|
Refrigerant |
|
R410A |
R410A |
|
|
|
|
|
|
Max. Heating Capacity (2) |
kW |
12,6 |
19,8 |
|
C.O.P (2) |
W/W |
3.89 |
3,12 |
|
Heating Capacity Min./Max.(2) |
kW |
4.2/12,6 |
7,5/19,8 |
|
Heating Power Input Min./Max.(2) |
kW |
0,93/3,07 |
2,26/6,84 |
|
C.O.P Min./Max.(2) |
W/W |
3.89/4,77 |
3,12/4,27 |
|
Max. Heating Capacity(3) |
kW |
11,5 |
19,1 |
|
C.O.P (3) |
W/W |
3,08 |
2,8 |
|
Heating Capacity Min./Max.(3) |
kW |
3,76/11,5 |
7,1/19,1 |
|
Heating power input Min./Max.(3) |
kW |
1,27/3,72 |
3,1/7,57 |
|
C.O.P Min./Max.(3) |
W/W |
2,97/3.28 |
2,8/3.4 |
|
Max. Cooling Capacity(4) |
kW |
10,3 |
14,5 |
|
E.E.R (4) |
W/W |
3,29 |
2,63 |
|
Cooling Capacity Min./Max.(4) |
kW |
4,29/10,37 |
5,7/14,5 |
|
Cooling Power Input Min./Max.(4) |
kW |
0,96/3,16 |
2,24/6,15 |
|
E.E.R Min./Max.(4) |
W/W |
3,29/4,63 |
2,63/3,30 |
|
Max. Cooling Capacity(5) |
kW |
7,9 |
12 |
|
E.E.R(5) |
W/W |
2,63 |
2,14 |
|
Cooling Capacity Min./Max.(5) |
kW |
2,34/7,91 |
5,1/12 |
|
Cooling Power Input Min./Max.(5) |
kW |
1,0/3,0 |
2,9/5,6 |
|
E.E.R Min./Max.(5) |
W/W |
2,33/3,12 |
2.14/2,53 |
|
Circuit Max. Pressure |
bar |
38 |
38 |
|
Compressor |
Type |
Twin Rotary |
Twin Rotary |
|
Quantity/System |
1 |
1 |
||
Fan |
Quantity |
|
2 |
2 |
Airflow |
m3/h |
4200 |
4500 |
|
Rated power |
W |
150 |
152 |
|
Noise Level |
Indoor/Outdoor |
dB(A) |
30/59 |
35/56 |
Water Side Heat Exchanger |
Type |
Plate Heat Exchanger |
Plate Heat Exchanger |
|
Water Pressure Drop |
kPa |
26 |
35 |
|
Piping Connection |
Inch |
G1" |
G1" |
|
Allowable Water Flow |
Min. Water Flow |
L/S |
0.37 |
0.48 |
Rated Water Flow |
0.61 |
0.79 |
||
Max. Water Flow |
0.73 |
0.95 |
||
Dimensions (LxDxH) |
Indoor unit |
mm |
380x273x580 |
600x300x900 |
Outdoor unit |
1123x400x1195 |
1000x460x1200 |
||
Weight Indoor/outdoor |
kg |
45/113 |
50/126 |
|
|
|
|
|
|
|
||||
(2) Heating condition: water inlet/outlet temperature: 30℃/35℃, Ambient temperature: DB 7℃/WB 6℃; |
||||
(3) Heating condition: water inlet/outlet temperature: 40℃/45℃, Ambient temperature: DB 7℃/WB 6℃; |
||||
(4) Cooling condition: water inlet/outlet temperature: 23℃/18℃, Ambient temperature: DB35℃/WB24℃; |
||||
(5) Cooling condition: water inlet/outlet temperature: 12℃/7℃, Ambient temperature: DB35℃/WB24℃; |
||||
(6) The specifications are subject to change without prior notice. For actual specifications of unit, please refer to the stickers on the unit. |
