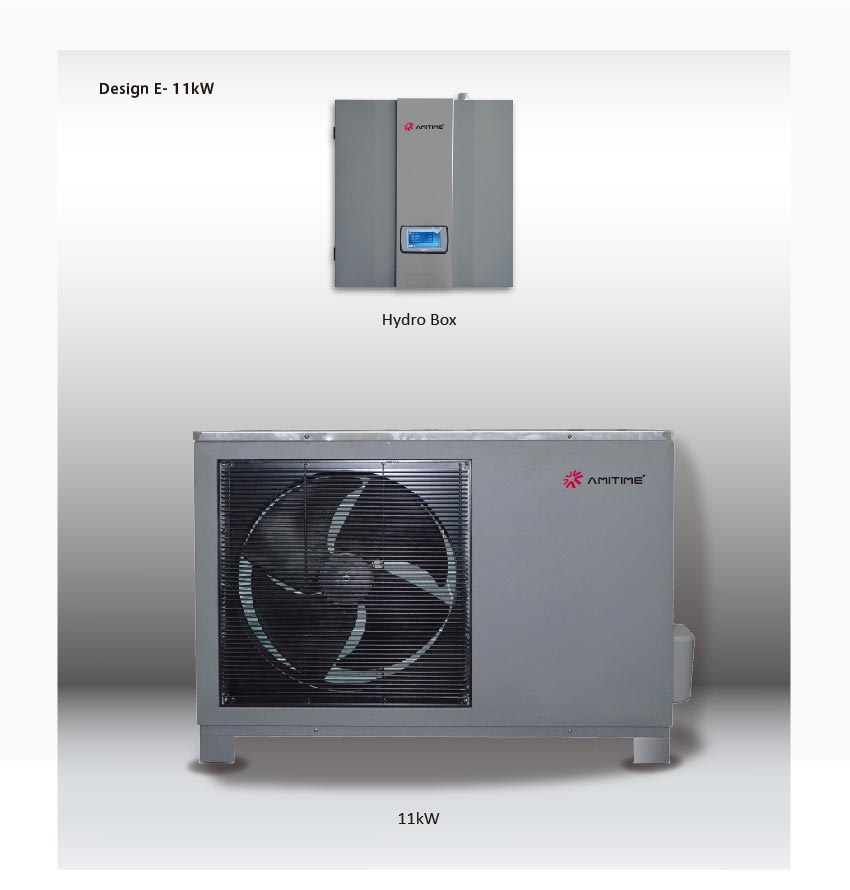

Monoblock õhk-vesi soojuspump 9 kw ja 11 kW mudelid

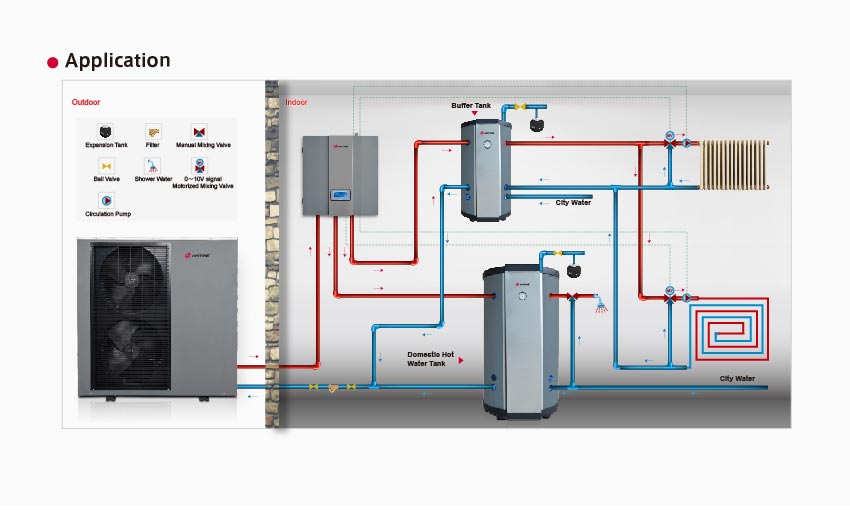

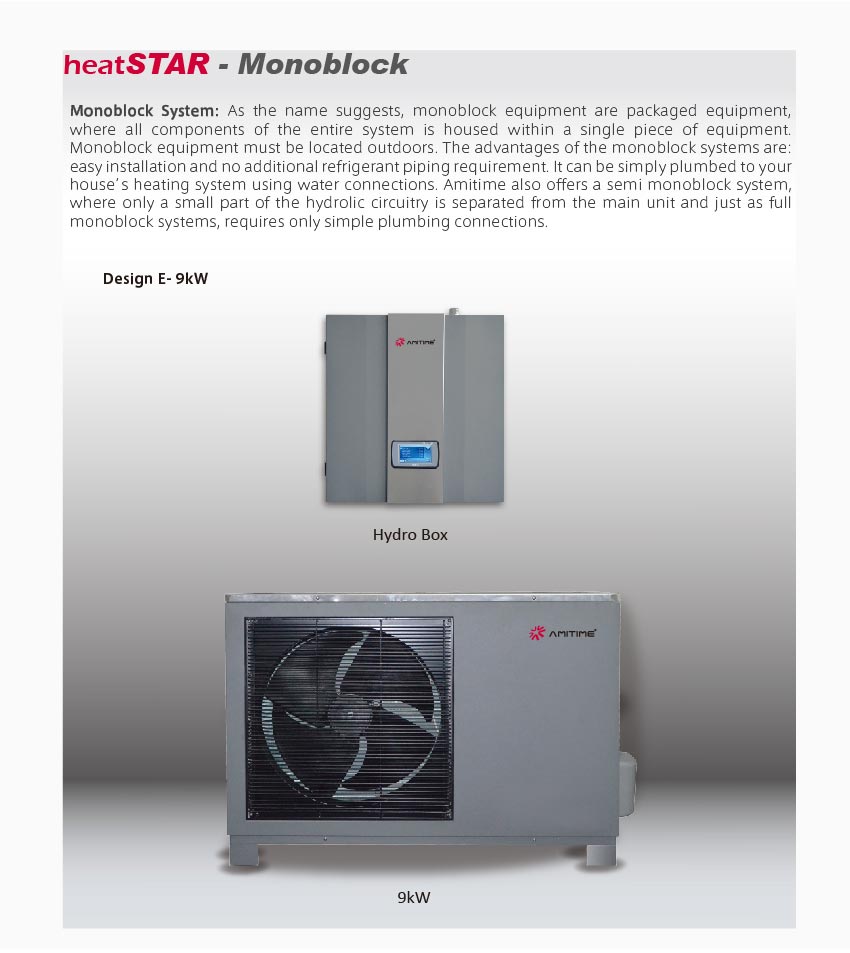

Monoblock kui mõiste tähendab et soojuspumba kõik osad on samas korpuses. Seega puudub vajadus siseosa ja välisosa vahelise külmatorustiku ühendamiseks. Monoblock mudeli paigaldus on mõistlik kui puudub võimalus külmamehhaaniku teenuse kasutamiseks. Paigaldaja peab tagama et õues asuv veetorustik on piisavalt hästi isoleeritud. Seade on täiendavalt varustatud ruumis sees asetseva hydroboxiga, milles on veepump ja juhtpult.
Soodne lahendus eramu kütmiseks.
|
Model (New model! Data could be specified) |
|
AWH09 |
AWH11 |
|
|
Power Supply |
V/Hz/Ph |
220-240/50/1 |
220-240/50/1 |
|
|
Refrigerant |
|
R410A |
R410A |
|
|
|
|
|
|
|
|
Max. Heating Capacity (2) |
kW |
10,1 |
11,5 |
|
|
C.O.P (2) |
W/W |
4.03 |
3.82 |
|
|
Heating Capacity Min./Max.(2) |
kW |
4.33/10,1 |
4.67/11,5 |
|
|
Heating Power Input Min./Max.(2) |
kW |
0,97/2,15 |
0,92/3,03 |
|
|
C.O.P Min./Max.(2) |
W/W |
4.02/4,65 |
3,82/5,05 |
|
|
Max. Heating Capacity(3) |
kW |
9,53 |
10,7 |
|
|
C.O.P (3) |
W/W |
3,17 |
2,95 |
|
|
Heating Capacity Min./Max.(3) |
kW |
4.19/9,53 |
4,14/10,70 |
|
|
Heating power input Min./Max.(3) |
kW |
1,23/2,99 |
1,22/3,62 |
|
|
C.O.P Min./Max.(3) |
W/W |
3.12/3.55 |
2,95/3.56 |
|
|
Max. Cooling Capacity(4) |
kW |
6,84 |
9,2 |
|
|
E.E.R (4) |
W/W |
2.09 |
2,68 |
|
|
Cooling Capacity Min./Max.(4) |
kW |
4,10/6,84 |
4,33/9,20 |
|
|
Cooling Power Input Min./Max.(4) |
kW |
1,23/3,28 |
0,99/3,5 |
|
|
E.E.R Min./Max.(4) |
W/W |
2,09/3,32 |
2,68/4,11 |
|
|
Max. Cooling Capacity(5) |
kW |
5,05 |
6,74 |
|
|
E.E.R(5) |
W/W |
1,58 |
2,15 |
|
|
Cooling Capacity Min./Max.(5) |
kW |
2.34/5,05 |
2.17/6,74 |
|
|
Cooling Power Input Min./Max.(5) |
kW |
1,08/3,20 |
0,92/3,13 |
|
|
E.E.R Min./Max.(5) |
W/W |
1,58/2,40 |
2.15/3.00 |
|
|
Circuit Max. Pressure |
bar |
38 |
38 |
|
|
Compressor |
Type |
Twin Rotary |
Twin Rotary |
|
|
Quantity/System |
1 |
1 |
||
|
Fan |
Quantity |
|
1 |
1 |
|
Airflow |
m3/h |
3000 |
3100 |
|
|
Rated power |
W |
76 |
76 |
|
|
Air Side Heat Exchanger |
Face area |
m2 |
0.705 |
0,871 |
|
Row-Fins/Inch |
2 Rows-14 |
2 Rows-14 |
||
|
Tube.Dia |
Inch |
3/8 O.D. |
3/8 O.D. |
|
|
Noise Level |
Indoor/Outdoor |
dB(A) |
30/56 |
30/56 |
|
Water Side Heat Exchanger |
Type |
Plate Heat Exchanger |
Plate Heat Exchanger |
|
|
Water Pressure Drop |
kPa |
23 |
23 |
|
|
Piping Connection |
Inch |
G1" |
G1" |
|
|
Allowable Water Flow |
Min. Water Flow |
L/S |
0.24 |
0.31 |
|
Rated Water Flow |
0.36 |
0.52 |
||
|
Max. Water Flow |
0.48 |
0.62 |
||
|
|
||||
|
(2) Heating condition: water inlet/outlet temperature: 30℃/35℃, Ambient temperature: DB 7℃/WB 6℃; |
||||
|
(3) Heating condition: water inlet/outlet temperature: 40℃/45℃, Ambient temperature: DB 7℃/WB 6℃; |
||||
|
(4) Cooling condition: water inlet/outlet temperature: 23℃/18℃, Ambient temperature: DB35℃/WB24℃; |
||||
|
(5) Cooling condition: water inlet/outlet temperature: 12℃/7℃, Ambient temperature: DB35℃/WB24℃; |
||||
|
(6) The specifications are subject to change without prior notice. For actual specifications of unit, please refer to the stickers on the unit. |
||||
